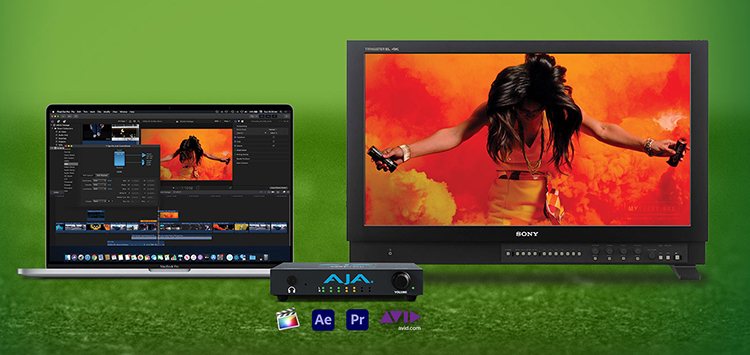

AJA T-TAP Pro 12G-SDI a 2.0-HDMI OUT
T-TAP Pro: 12/10-bit; SD, HD, 2K, 4K, UltraHD výstup Thunderbolt 3
T-TAP™ Pro od AJA přináší video profesionálům kompaktní zařízení napájené přes Thunderbolt™ 3 umožňující vysoce kvalitní 12/10-bit SD, HD, 2K, 4K, UltraHD video výstup s embedovaným zvukem (PC/Mac).
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Video Formáty
- 29.97(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1080i 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
Video Výstup Digital
- 3G/SD/HD SDI, SMPTE-259/292/296/42412G-SDI*, SMPTE-2082, 12-bit*, 10-bit
- 6G-SDI*, SMPTE-2081, 10-bit
- 3G-SDI, SMPTE 425
RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
- 1.5G-SDI, SMPTE 292M
Single Link HD-SDI YCbCr 4:2:2 10-bit
Dual Link RGB 4:4:4 12-bit*, Dual-Link YCbCr 4:2:2 10-bit
- 270 Mbps SDI, SMPTE 259M-C
YCbCr 4:2:2 10-bit, 8-bit
- HDMI v2.0
30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit
Audio Výstup Digital
- 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
- 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Výstup Analog
- 2-channel, 18-bit D/A analog audio, 48 kHz sample rate, unbalanced, using standard 3.5mm jack
- 1.2V RMS full scale digital output level (0 dBFS)
HDR
- 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
- SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
- HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3 HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G
Note: HDR support is application dependent. Check with your software manufacturer for compatibility.
Fyzické Parametry
- Šířka: 12.7cm
- Hloubka: 2,54cm
- Výška: 12.7cm
- Rozhraní: Thunderbolt 3 (jeden port)
AJA T-TAP Pro specs (301kB)
