Realtime hardware up/down/cross conversion
for capture, monitoring, and output

Matrox MXO2 products and Mojito MAX let you deliver in any format your clients demand. The 10-bit hardware scaling provides high-quality mastering.

HD to SD downscaling

Realtime HD to SD downscaling is performed with proper conversion of the HD color space to the SD color space. Proper aspect ratio conversion to anamorphic and letterbox are supported on Mac and PC. Center-cut is supported on the Mac. You can monitor or record an SD master of your HD project in real time.

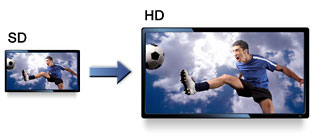

SD to HD upscaling

Realtime SD to HD upscaling is perfomed with proper conversion of the SD color space to the HD color space. Footage with a 4:3 aspect ration will be "pillarboxed", 16:9 SD footage will be scaled to full screen.

Cross conversion

Realtime cross conversion from 720 to 1080 and 1080 to 720 is supported. Realtime frame rate conversion is also supported with 2:3:2:3 and 2:3:3:2 cadences. This feature is useful if, for example, your source material is recorded at a different frame rate or resolution than the delivery format your client requires. It also facilitates monitoring when, for example, you need to work with 23.98 fps footage but your monitor does not support that frame rate. You can use the realtime frame rate conversion feature to view your project at 29.97 fps. Conversion from 23.98 fps to 25 fps is handled by your editing application and the host.
