HD Video Wall Controller

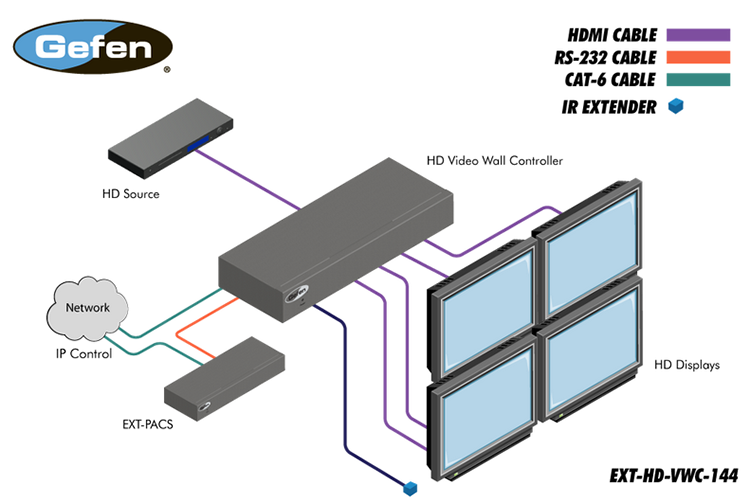

The Gefen HD Video Wall Controller is the perfect solution for entertainment and digital signage applications in retail outlets, clubs, trade shows, control centers, building lobbies, and other similar venues. The HDTV displays are installed in a 2x2 configuration to create a large video wall. It accepts a single HDCP-compliant HDMI source and divides the picture over four equal-sized displays, each with resolution up to 1080p Full HD. The HD Video Wall Controller?s versatile bezel compensation ability can accommodate any display bezel width. Power on, lock, and menu navigation control buttons are accessible via front panel and the handheld IR remote control, as well as via RS-232 and IP (web server interface, Telnet, and UDP). An intuitive on-screen Graphical User Interface simplifies set-up and configuration.

Features:

- Create a 2x2 video wall from any Hi-Def source, using four HDTV displays
- Split and scale a single Hi-Def source to four displays
- Input and output resolutions up to 1080p Full HD and 1920x1200 (WUXGA)
- HDCP compliant
- Advanced Bezel Compensation feature provides compatibility with virtually any screen frame width, and allows for accurate display of the image
- Controllable via front panel, IR, IP (web server interface, Telnet, and UDP), and RS-232
- Easy to use on-screen Graphical User Interface (GUI)
- Advanced web server interface using an external computer
- Handheld IR remote control
- Field-upgradeable firmware via web server interface
- Locking power supply connector
- 1U tall rack-mountable enclosure, rack ears included

Technical Specifications:

- Video Input connector: (1) HDMI Type A, 19-pin, female, locking
- Video Output connectors: (4) HDMI Type A, 19-pin, female, locking
- RS-232 connector: (1) DB-9, female
- IP Control connector: (1) RJ-45, female
- Menu button: (1) tact-type, white with blue backlight color
- Control buttons: (6) tact-type, white color
- Power button: (1) tact-type, white with blue backlight color
- Standby Indicator: (1) LED, red color
- Power Supply: 12V DC, locking
- Power Consumption: 24W (max.)
- Dimensions (W x H x D): 16.9" x 1.7" x 7.9" (430mm x 42mm x 200mm)
- Unit Weight: 7 lbs. (3.2 kg)

Package includes:

(1) HD Video Wall Controller (EXT-HD-VWC-144)
(1) 6 ft. (2m) Locking HDMI Cable (CAB-HD-LCK-06MM)
(1) 6 ft. (2m) RS-232 Cable (CAB-DB9-6MF)
(1) IR Extender Module (EXT-RMT-EXTIRN)
(1) IR Remote Control (RMT-HD-VWC-144)
(1) 12V DC Power Supply (EXT-PS12U3AIP-LP)
(1) Quick-Start Guide (QSG-HD-VWC-144)
